Product Comparison - General Aircon

產品特點

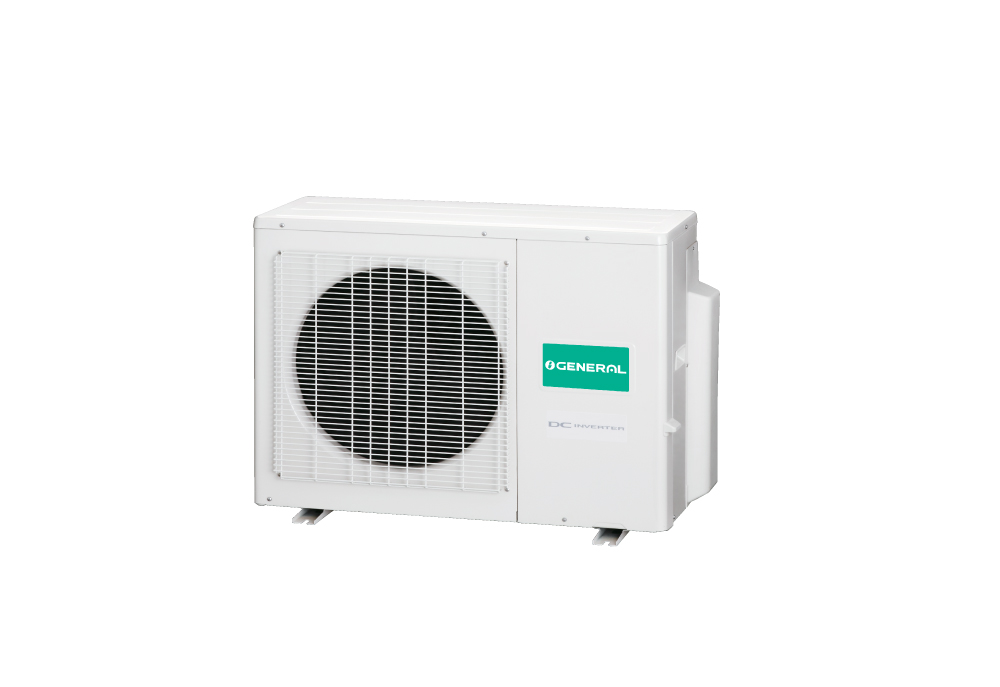

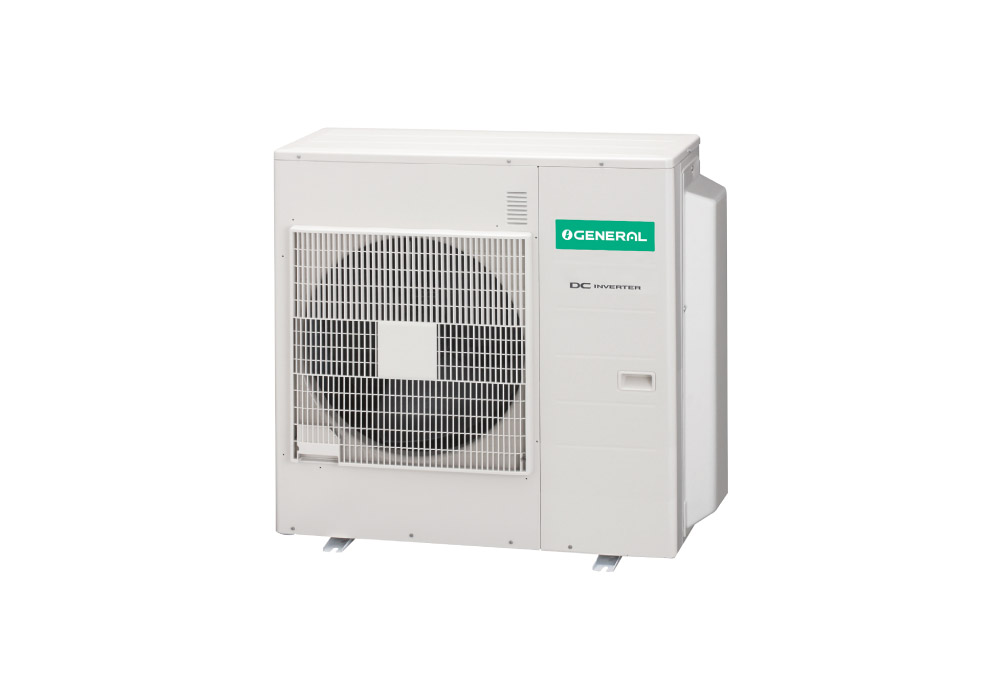

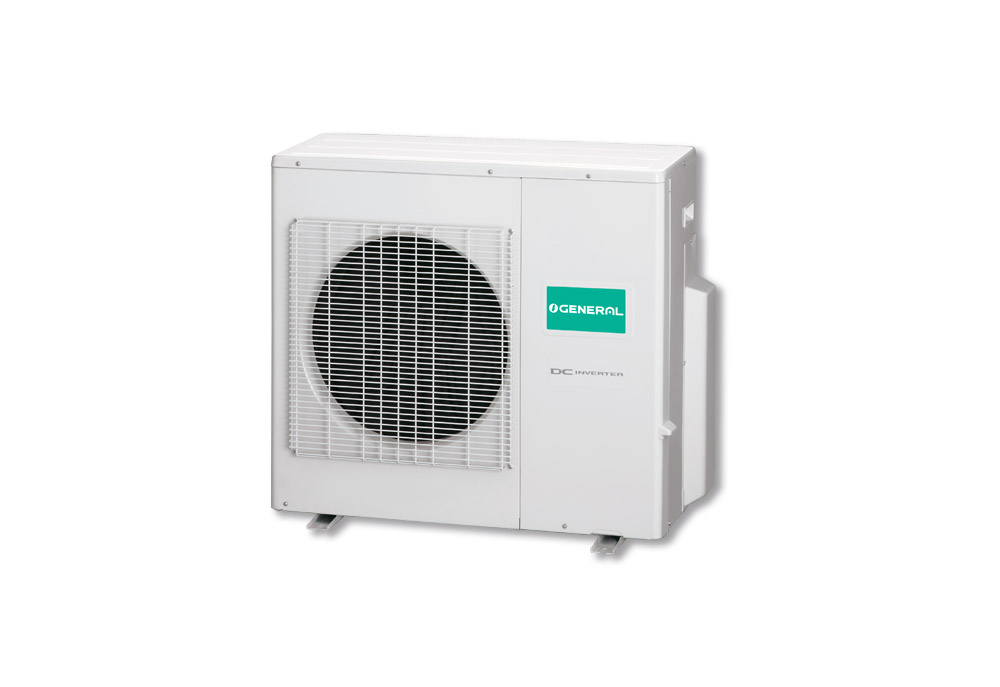

Small and light weight outdoor unit

Low sound level design

Advanced high efficiency technology

Long piping lenght

Non-stop oil recovery operation

Easier Installation

Small and light weight outdoor unit

Low sound level design

Advanced high efficiency technology

Long poping lenght

Non-stop oil recovery operation

Easier Installation

Suitable for 2 and 3 Indoor Units (Please download the combination table for further details)

Energy Saving

Inverter Cooling / Heating air conditioner

Flexible installation

Refrigerant R410A, Protect Earth Allopatric

Suggested area : 160 - 200 sq.ft.

Total cooling capacity : minimun is 14,000 Btu/h, maximun is 30,000 Btu/h

Safety Tips for Air Conditioner

Quiet Operation

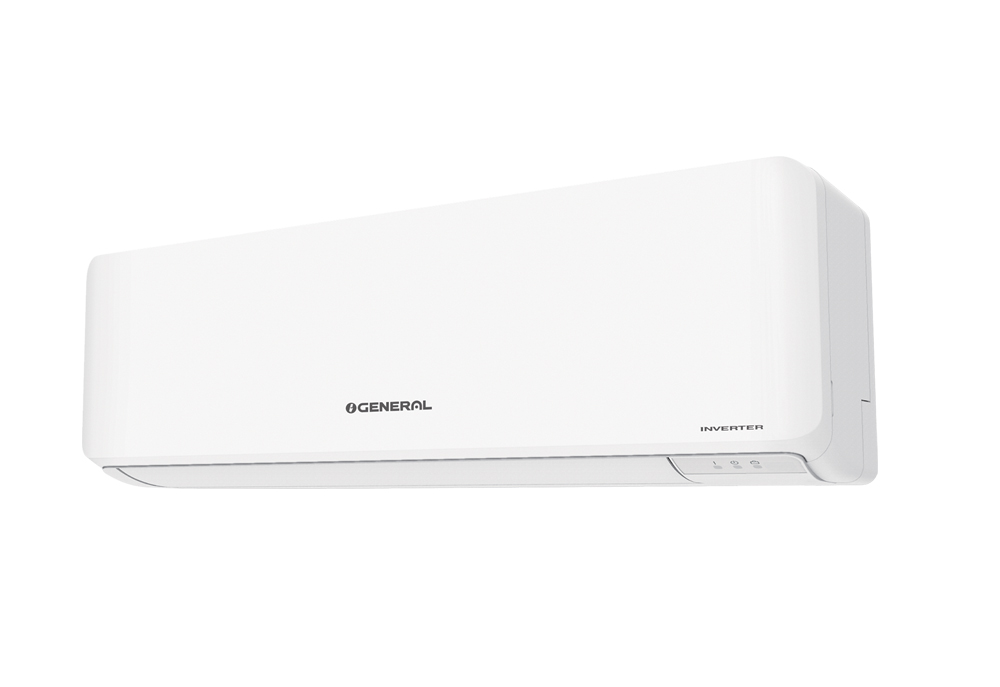

Inverter Cooling / Heating air conditioner

Moisture Removal

Up/Down Swing Flaps

Automatic Flaps

Auto Shut Flaps

Automatic Air Flow Adjustment

Auto Restart

Sleep Timer

Program Timer

4 selective wind speed (Quiet, Low, Medium and High)

Refrigerant R410A, Protect Earth Allopatric

Supported with Wireless LAN control (Installation of wireless lan interface UTY-TFNX22 and "FGLair" app are required)

Suggested area : 80-110 sq.ft.

Safety Tips for Air Conditioner

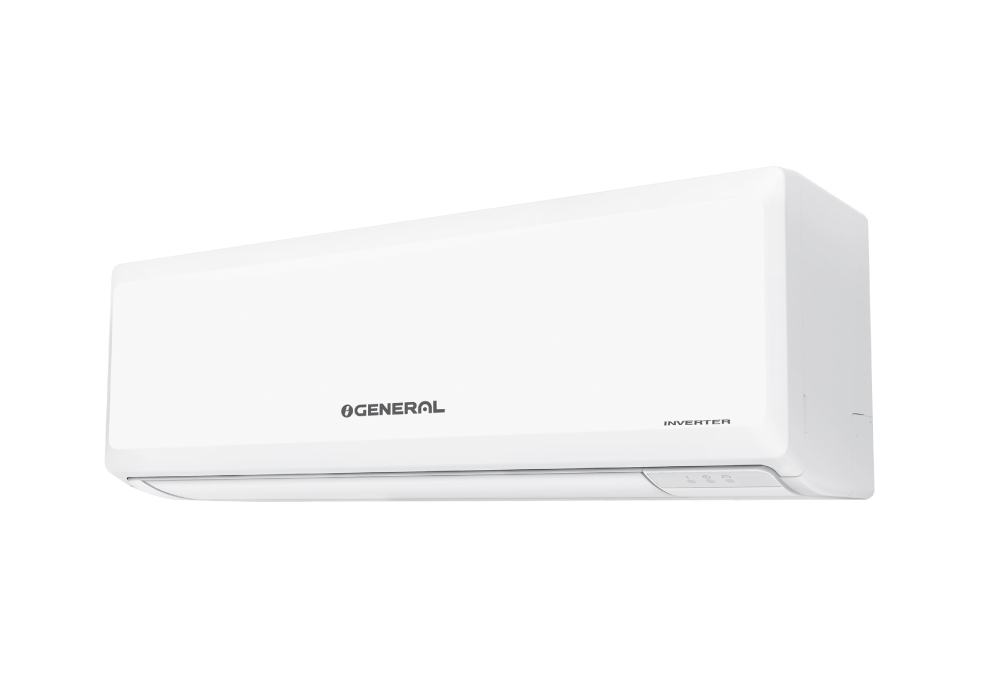

All DC Inverter cooling / heating

Automatic Air Flow Adjustment

Auto restart

Auto Changeover

Sleep timer

Program timer

Refrigerant R410A, Protect Earth Allopatric

Suggested area : 120-150 sq.ft.

Always use the remote controller to control the operation of the air-conditioner instead of the power breaker.(Turn off the power supply until the air-conditioner has been stopped for 2 to 3 min.)

Safety Tips for Air Conditioner

Style

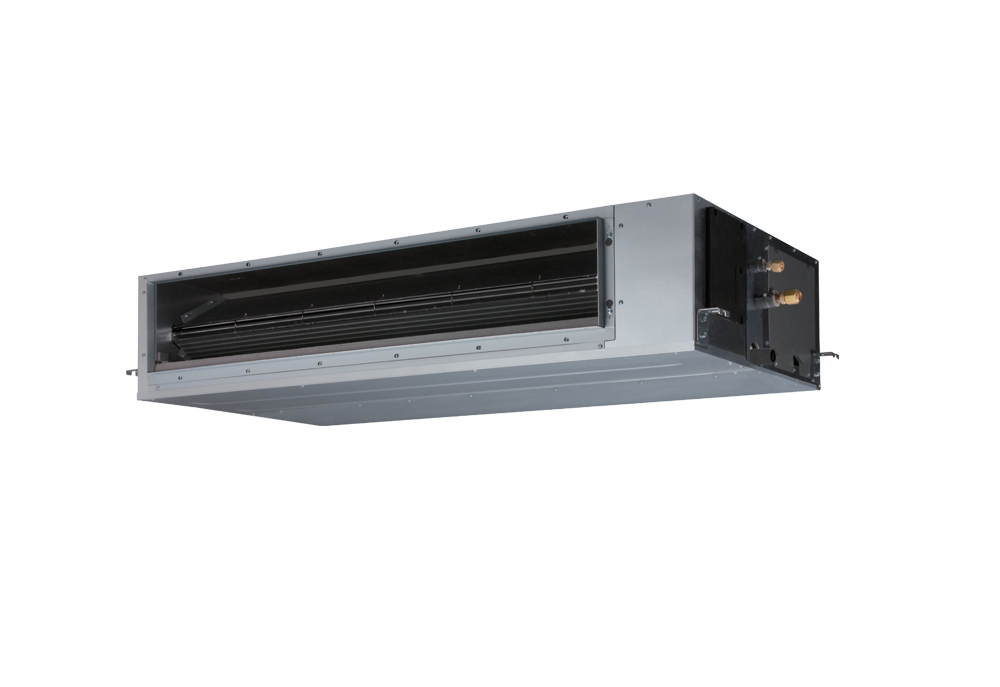

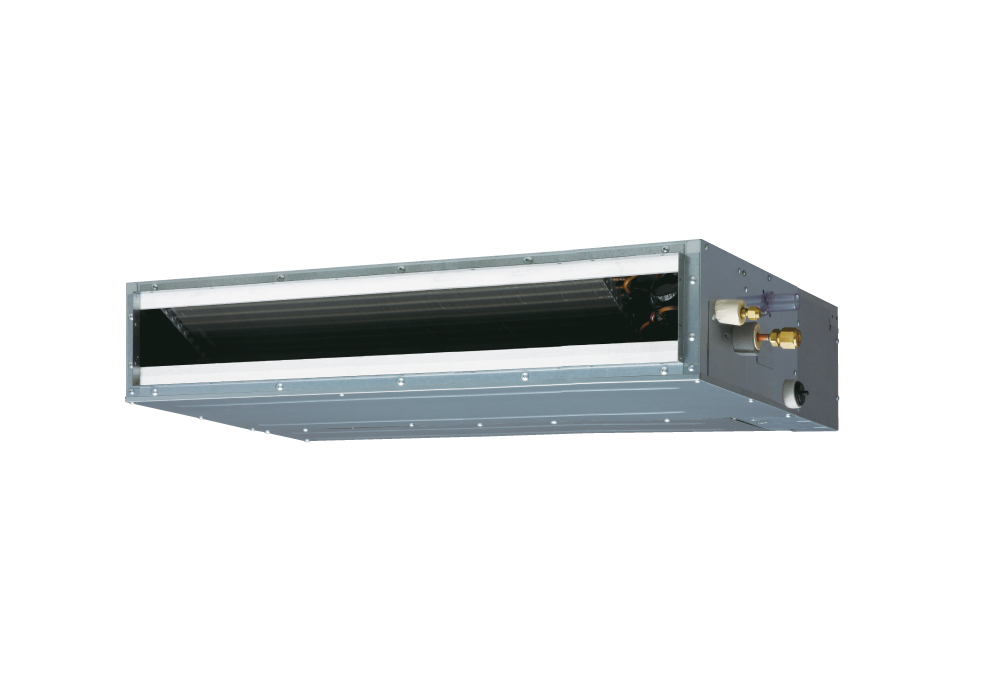

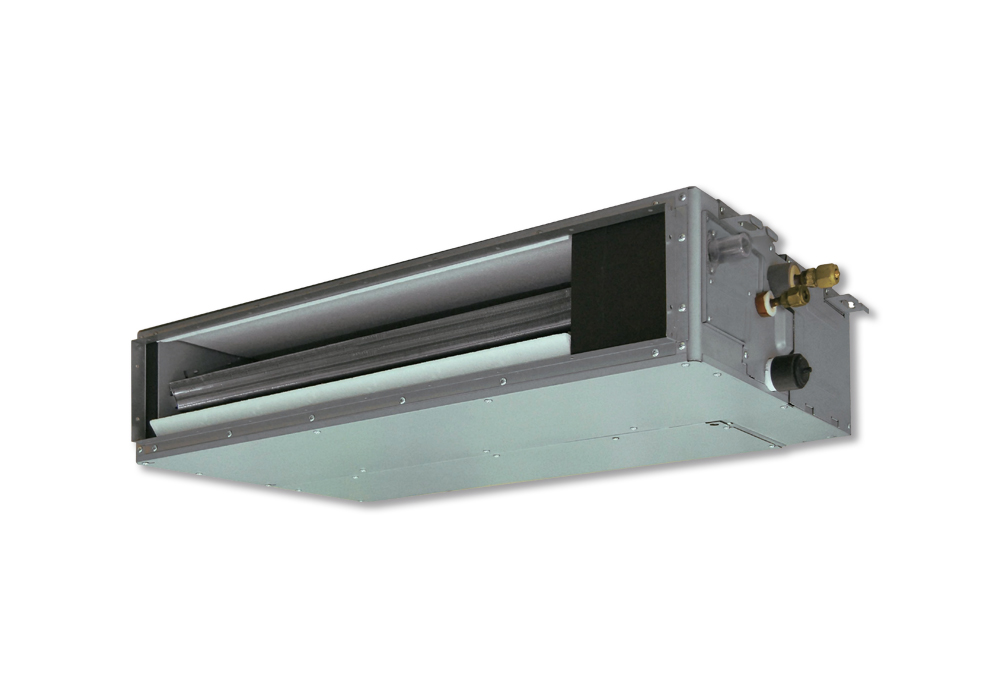

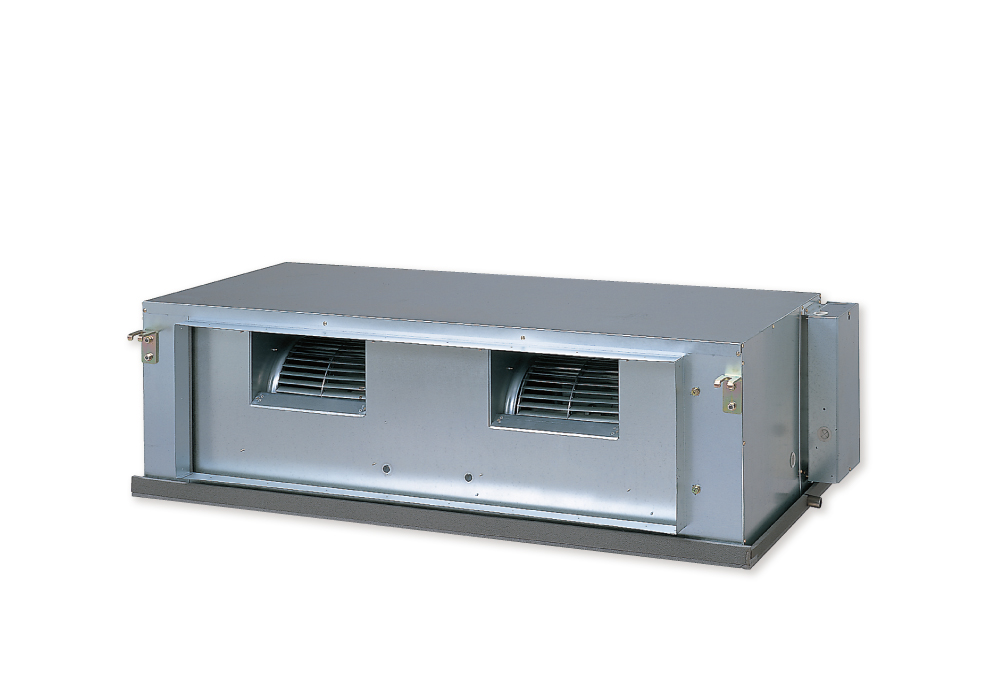

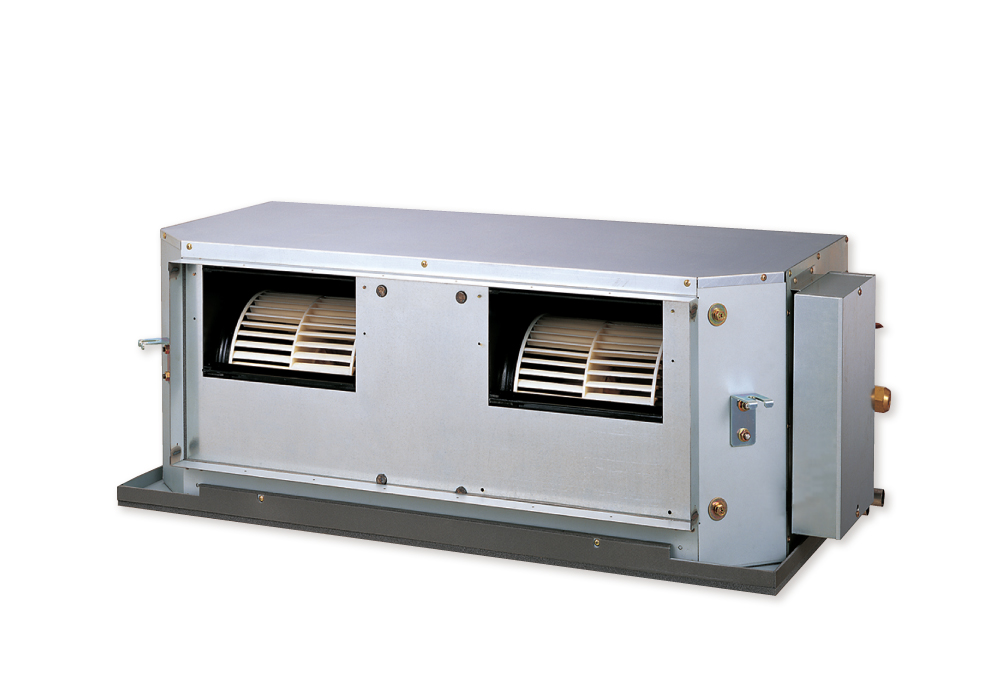

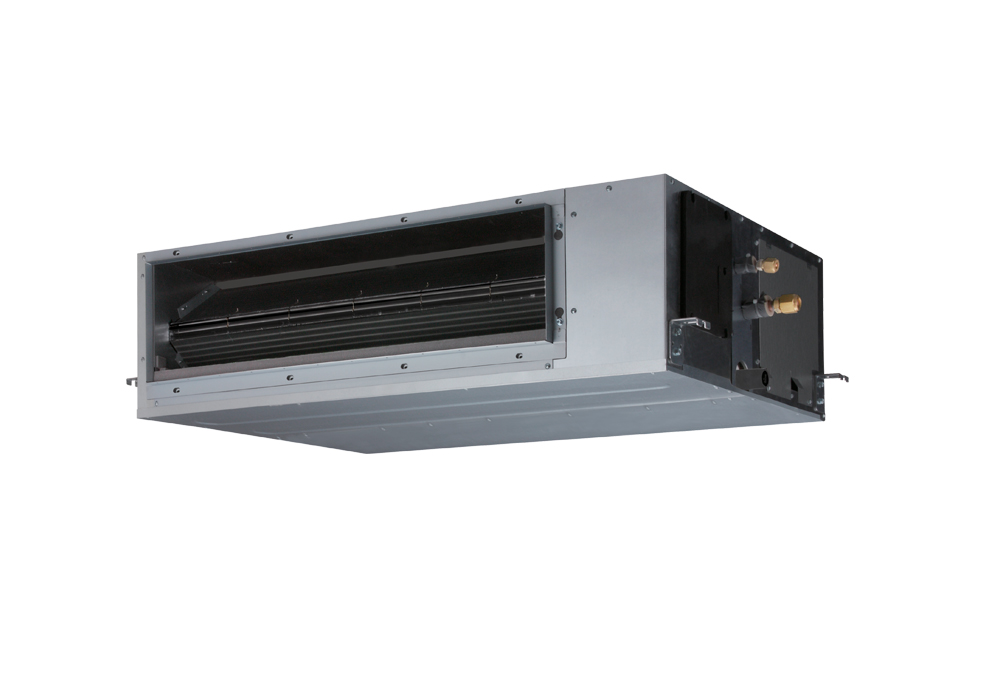

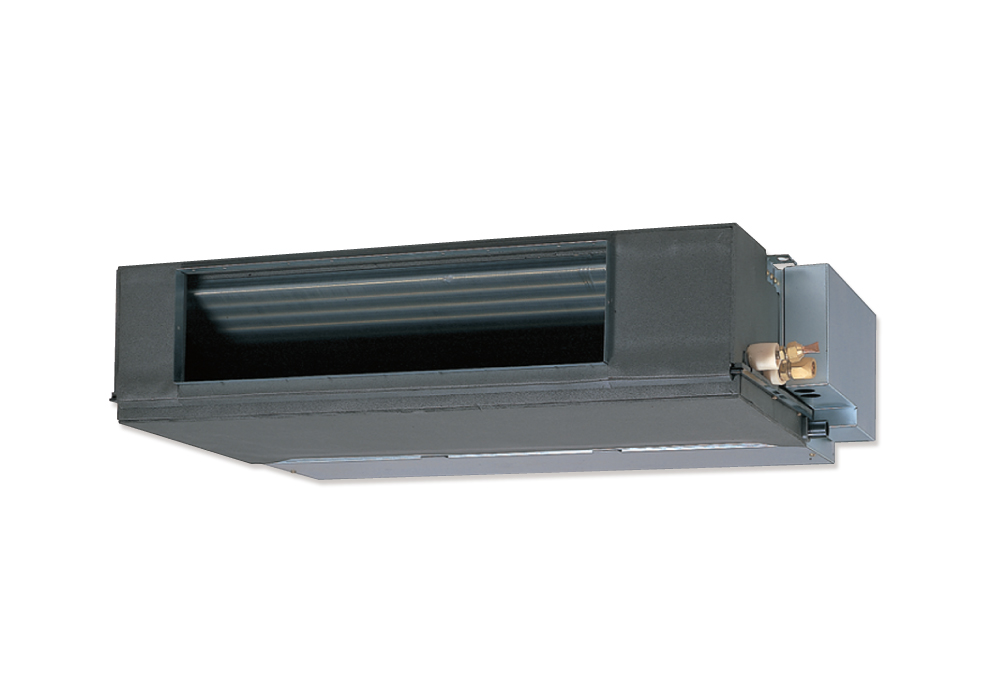

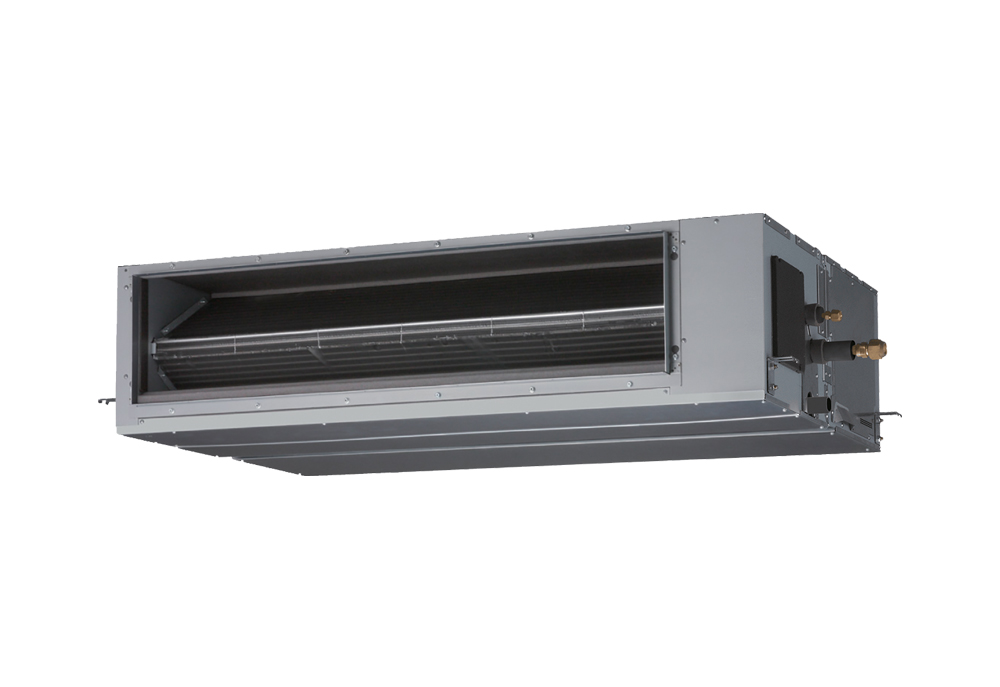

Inverter Duct Type

Cooling Capacity - Btu/h

11,950

Cooling Capacity - kW

3.50

Heating Capacity - Btu/h

14,000

Heating Capacity - kW

4.10

EER (Cooling) - kW

3.33

COP (Heating) - kW

3.69

Power Consumption (Cooling) - kW

1.05

Power Consumption (Heating) - kW

1.11

Voltage / Phase / Frequency - V / Ø / Hz

230/1/50

Dimension (I.U.) HxWxD - mm

217 x 953 x 595

Dimension (O.U.) HxWxD - mm

578 x 790 x 300

Net Weight (I.U. / O.U.) - kg

23/40

Remote Control

Wired

Power Supply

Outdoor

Origin (Indoor)

China

Origin (Outdoor)

China

Refrigerant

R410A

Style

3Rooms , Inverter Cooling / Heating

1HP , Inverter Cooling / Heating

Cooling Capacity - Btu/h

18,400

8,500

Cooling Capacity - kW

5.40

2.50

Heating Capacity - Btu/h

23,200

11,300

Heating Capacity - kW

6.80

3.30

Power Supply / Phase / Frequency - V/Ø/Hz

230 / 1 / 50

Dimension (I.U.) HxWxD - mm

268 x 840 x 203

Dimension (O.U.) HxWxD - mm

700 x 900 x 330

Net Weight - kg

55

8.5

Origin (Indoor)

China

Origin (Outdoor)

Thailand

Cooling Capacity - kW

12.1

15.1

Heating Capacity - kW

13.6

16.5

Input Power (Cooling) - kW

3.44

5.03

Input Power (Heating) - kW

3.09

4.11

Sound Pressure Level (Cooling) - dB(A)

51

54

Sound Pressure Level (Heating) - dB(A)

54

56

Voltage / Phase / Frequency - V / Ø / Hz

230/1/50

Dimension (O.U.) HxWxD - mm

998 x 970 x 370

Weight - kg

86

87

Connection pipe diameter (Liquid) - mm

9.52

Connection pipe diameter (Gas) - mm

15.88

Total pipe length - m

50

Max. Height difference - m

30

Refrigerant

R410A
